Description

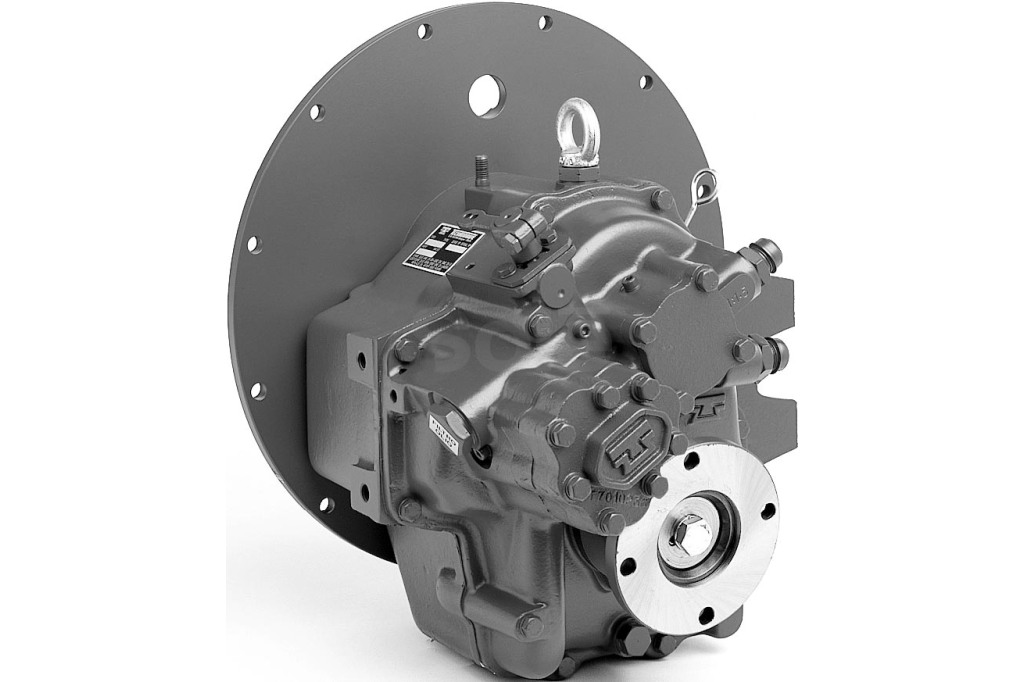

The ENG002 TRANSMISSION BLOCK: MICTDIS-MH85644H75 marine transmission features an aluminum alloy housing and is equipped with hydraulically actuated multi-plate clutches. Its discs and gears are engineered to transmit maximum power while maintaining the same ratio at both the front and rear. Additionally, the 7° inclined shaft output is ideal for planning or semi-displacement hulls.
| Engine |
MICTDIS |
Clutch Type |
º Departure |
Net. |
| MH85644H75 |
|
Hydraulic |
7 |
2.30:1 |
|
|
Hydraulic |
7 |
1.44:1 |
| Oil Type |
SAE 15W40 |
| Cap. Oil |
6.5 L |
| º Max. Func. |
15th |
| º Departure |
7th |
| Weight |
115 Kg |
| Max. Temp. |
95 ºC |
| Inverter type |
INCLINED |
Reductions
| Ahead |
Behind |
| 1.44:1 |
1.44:1 |
| 2.00:1 |
2.00:1 |
| 2.30:1 |
2.30:1 |
All reductions are available in 45 mm and 75 mm (L) axle.
