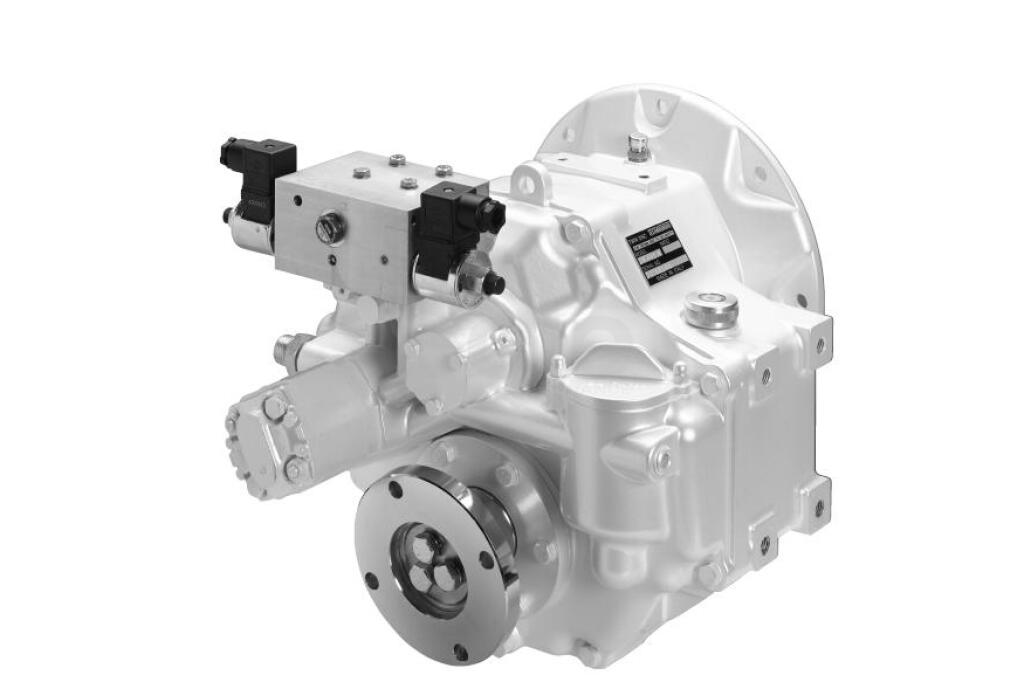

The ENGX008 TRANSMISSION BLOCK: MICTDIS-QW0098NBM marine transmission features hydraulically actuated multi-plate clutches. These clutches and gears are engineered to transmit full power, maintaining the same gear ratio in both forward and reverse gears. Additionally, the output shaft’s 8° downward angle facilitates the proper installation of the marine engine-transmission unit in planning or semi-displacement hulls.
| Engine |
MICTDIS |
Clutch Type |
º Departure |
Net. |
| MICTDIS-QW0098NBM |
|
|
8 |
2.40:1 |
|
|
Hydraulic |
8 |
1.51:1 |
|
|
Hydraulic |
8 |
1.51:1 |
| Oil Type |
SAE 15W40 |
| Cap. Oil |
2.7 L |
| º Max. Func. |
15th |
| º Departure |
8th |
| Weight |
36 Kg |
| Max. Temp. |
95 ºC |
| Inverter type |
INCLINED |
Reductions
| Ahead |
Behind |
|
|
| 1.51:1 |
1.51:1 |
| 2.09:1 |
2.09:1 |
| 2.40:1 |
2.40:1 |
All reductions are available in 45 mm and 75 mm (L) axle.
